Power Handling Capacity:Up to 20A
Operating Voltage Range:100V to 400V AC
Reverse Voltage Rating:1000V
Temperature Range:-40°C to +105°C
Insulation Resistance:≥ 1000MΩ
Current Direction:Forward Blocking Current
Package Size:40mm x 16mm x 10mm

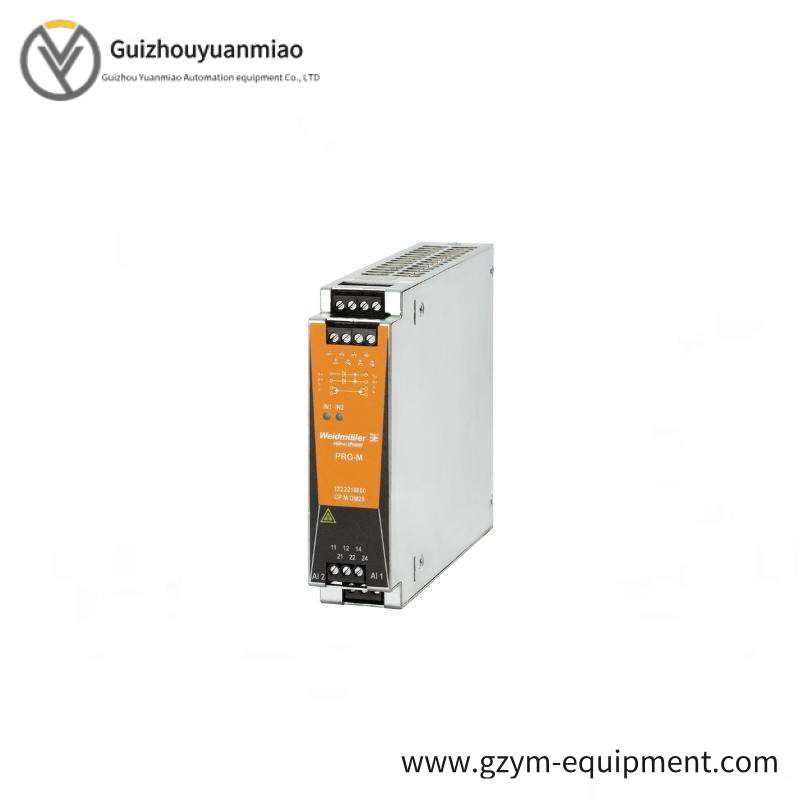

The Weidmüller CP-DM20 Diode Module is engineered for maximum reliability and efficiency in industrial environments. Its compact design and robust construction make it ideal for applications where space is limited but protection from overvoltage is critical.
Equipped with a high current rating, this diode module is capable of handling peak currents up to 20A, providing exceptional surge protection against transient voltage spikes that can cause damage to sensitive electronics.
Operating within an extended temperature range from -40°C to +105°C, the CP-DM20 ensures stable performance across a wide variety of industrial conditions, making it suitable for use in extreme environments.
The module’s panel mount style facilitates easy integration into existing control systems without compromising on space. Its compact size (27.5mm x 19mm x 6.5mm) allows for efficient use of cabinet space.
Compliant with the Restriction of Hazardous Substances Directive (RoHS), the Weidmüller CP-DM20 Diode Module adheres to environmental regulations, promoting sustainable manufacturing practices.
Certified by UL, this diode module meets safety standards for industrial use, offering peace of mind and ensuring compliance with international safety norms.
