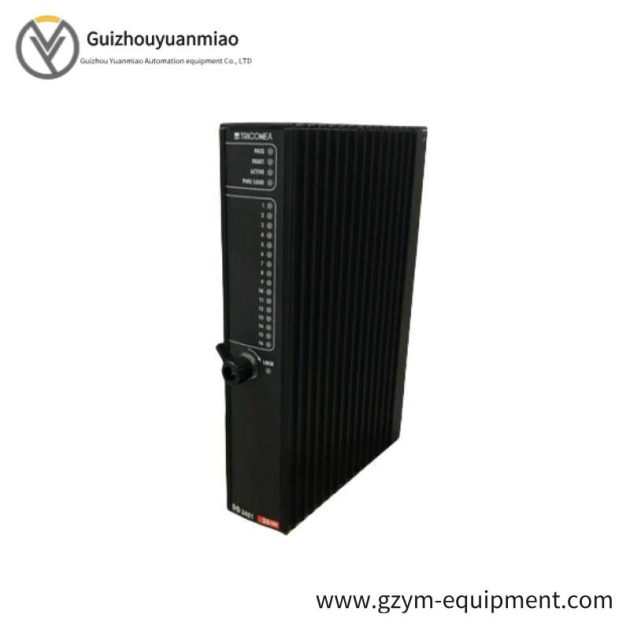

Triconex DO3401 Digital Output Module: High-Performance Control Solutions for Industrial Automation

Product Type:Digital Output Modules

Nominal Output Voltage:24 VDC

Operational Voltage Range:15 to 30 VDC

Absolute Maximum Output Voltage:33 VDC

Absolute Maximum Reverse Input Voltage:- 0.6 VDC

Switching Output Current:<4.8 A, self-limiting

Degraded Mode Output Current:> 0.7 A, self-limiting

Field Alarms:Loss of field power, output point shorted

On or Off Loop-back Thresholds:0–5 VDC = Off region, 6–14 VDC = transition region, 15–30 VDC = On region

Leakage to Load (Off):Self-limited

Diagnostic (Loss of View):Force-to-value diagnostic (FVD), <2 ms/test

Maximum Input Toggle Rate:<20/sec FVD

Off State Glitch Duration:<2 ms

Magnitude:≈36% test voltage

Output Impedance:0–5 VDC, ≈ 100 kΩ

ADC Scan Time:<1 ms for all 32 points

Functional Earth to Protective Earth Isolation:500 VDC, minimum

Functional Earth to Functional Earth (Logic Ground) Isolation:800 VDC, minimum

    Engineered for superior performance and reliability in demanding industrial environments, the Triconex D03401 Digital Output Module ensures consistent and accurate control of processes.

    Featuring a wide operational voltage range and robust insulation capabilities, this module is capable of handling a variety of power sources and environments without compromising performance.

    With its self-limiting switching and degraded mode current control, the Triconex D03401 is designed to maintain system integrity even under varying conditions, providing peace of mind for operators and engineers alike.

    Innovative diagnostic features, including Force-to-Value Diagnostic (FVD), enable quick identification of faults, minimizing downtime and maximizing efficiency.

    Offering unparalleled isolation between functional and protective earth, the Triconex D03401 ensures the safety of personnel and equipment, making it an indispensable component in critical control systems.
