Module Type:Analog Input Module
Model Number:1746SC-INI4VI
Number of Channels:4
Input Voltage Range:-10 to 10 VDC
Input Current Range:-20 to 20 mA
Common Mode Voltage Range:-20 to 20 V
Resolution:12-bit
Voltage Rating:Overvoltage Protection: 10 VDC
Current Rating:Backplane Current Draw: 35 mA at 5 V, 85 mA at 24 V
Isolation:Backplane: 500 VDC
Compatibility:Allen-Bradley SLC 500
Power Requirements:Requires 5V DC and 24V DC power

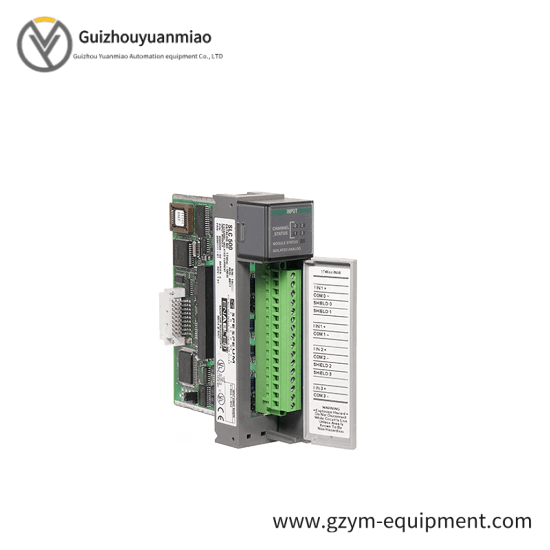

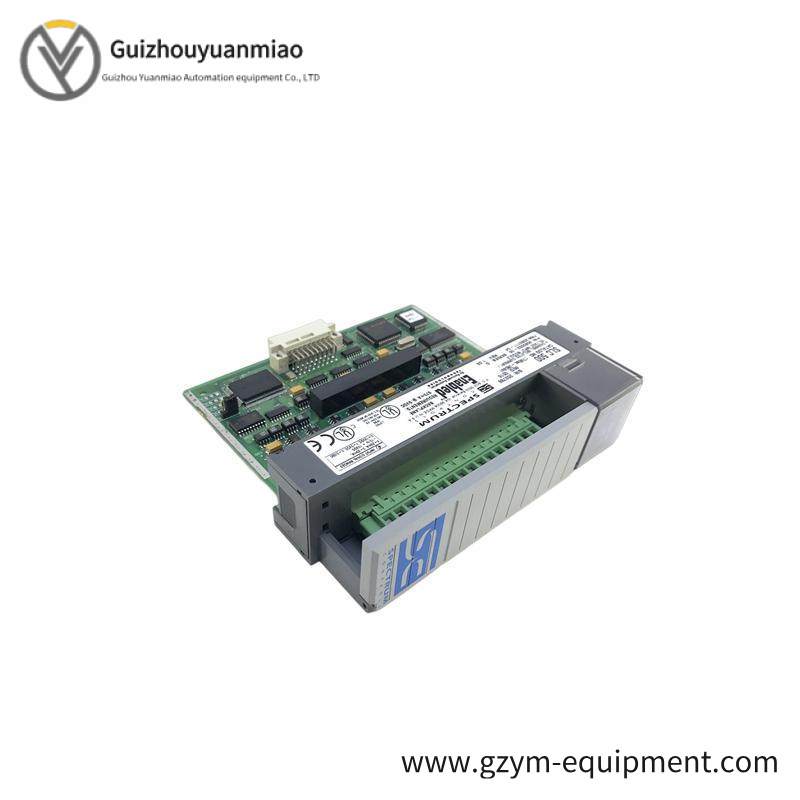

The Spectrum Controls 1746SC-INI4VI advanced analog input module offers superior performance and reliability for industrial automation applications. Designed with precision engineering, this module supports up to four channels for handling voltage and current signals, making it ideal for complex control systems.
This module boasts a wide common mode voltage range of -20 to 20V and absolute input voltage of ±7.5VDC or ±7.5VAC RMS, ensuring compatibility with a variety of sensors and devices. Its robust design includes overvoltage protection up to 7.5VAC RMS, safeguarding against unexpected voltage spikes.
With a backplane current draw of 35mA at 5V and 85mA at 24V, this analog input module ensures efficient operation within industrial control systems. Its isolation capabilities, rated at 500VDC, provide an additional layer of safety and stability in demanding environments.
The open-type enclosure of the 1746SC-INI4VI allows for easy installation and maintenance, while its compact design ensures minimal space requirements. Ideal for use in manufacturing plants, oil and gas facilities, and other industrial settings, this module streamlines the process of data acquisition and control.
Experience unparalleled accuracy and efficiency with the Spectrum Controls 1746SC-INI4VI advanced analog input module. Whether you’re upgrading an existing system or building a new one, this module provides the reliability and flexibility needed to meet modern industrial control demands.
