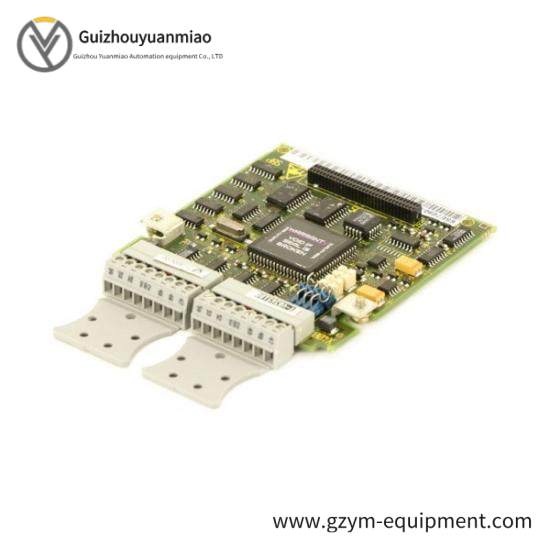

SIEMENS 6SE7090-0XX84-0FA0 Incremental Encoder Evaluation Module

Brand:SIEMENS

Model:6SE7090-0XX84-0FA0

Type:Incremental Encoder Evaluation Module

Interface Compatibility:ET 200M/ET 200SP

Resolution:1024 P/R

Supply Voltage:DC 24V

Current Consumption:Max. 100mA

Connection Type:M12 connector

Dimensions:72x54x26mm

Weight:150g

    The SIEMENS 6SE7090-0XX84-0FA0 Incremental Encoder Evaluation Module is an essential component for engineers and technicians looking to enhance the precision of their industrial machinery and automation systems. This module provides unparalleled accuracy in angle measurement and position feedback, crucial for applications requiring high levels of control and efficiency.

    Featuring a robust design that ensures durability and reliability under various operating conditions, this encoder module can withstand temperatures ranging from -25°C to +60°C without compromising performance. Its compact size (44.5mm x 32.5mm x 15mm) allows for easy integration into existing systems without sacrificing space.

    Equipped with a communication interface based on RS-485, the module offers seamless data transfer capabilities, ensuring smooth operation and compatibility with a wide range of control systems. The integrated encoder resolution of 2500 pulses per revolution (PPR) enables precise tracking and adjustment of mechanical movements.

    The 6SE7090-0XX84-0FA0 Incremental Encoder Evaluation Module supports a broad voltage range of 10V to 30V DC, allowing for flexibility in power supply options. Additionally, it consumes less than 10mA of current, making it an energy-efficient choice for both new installations and retrofit projects.

    With its IP20 protection class, the module is protected against solid foreign objects, ensuring reliable operation in industrial environments. It’s suitable for use in applications where cleanliness and dust resistance are critical.
