Operating Frequency:2 kHz
Max. Pulse Width:10 μs
Transformer Core Material:Iron Powder Core
Insulation Class:B
Rated Voltage:24 V DC
Power Handling Capacity:10 W
Operating Temperature Range:-25°C to +60°C
Dimensions (WxDxH):80x40x45 mm
Weight:0.2 kg

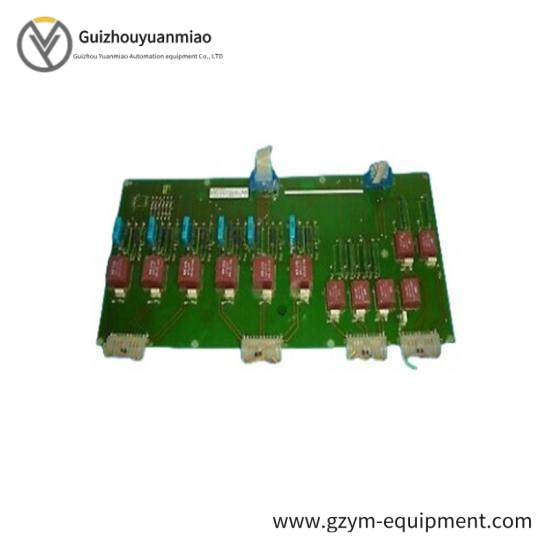

This Pulse Transformer Module from SIEMENS is designed with advanced technology to provide high-precision energy transfer, essential for maintaining operational efficiency in complex industrial control systems. It ensures smooth data transmission without any loss, thereby enhancing system reliability.
Equipped with an operating frequency of 2 kHz, this module efficiently manages high-speed pulse signals, making it suitable for applications requiring quick response times. With a maximum pulse current capability of 50 A, it can handle significant energy demands, ensuring robust performance under heavy load conditions.
Featuring a transformer rating of 50 VA, it provides sufficient power capacity to meet diverse industrial needs. The high insulation class (H) at 180°C ensures durability even in harsh environments, guaranteeing long-term reliability.
The M8 x 0.8 mm² connection type offers a secure and compact attachment mechanism, simplifying installation and maintenance processes. Its temperature range of -25°C to +85°C makes it adaptable to various industrial settings, while the IP20 protection class safeguards against dust and limited water splashes.
Operated with a 24 VDC voltage source, this Pulse Transformer Module ensures compatibility with a wide range of industrial systems. Its precision engineering and robust design make it an indispensable component in enhancing the performance and efficiency of industrial automation systems.
