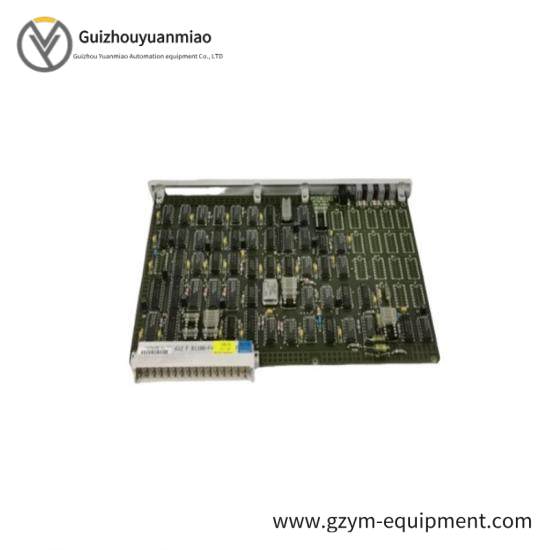

Siemens 6DS1104-8AA Clock Pulse Generator Module

Model Number:6DS1104-8AA

Brand:Siemens

Type:Clock Pulse Generation Module

Operating Voltage:DC 24V

Pulse Frequency Range:1 Hz to 1 MHz

Output Pulse Count:Up to 10,000,000 pulses per cycle

Signal Quality:Highly accurate and stable

Environment Temperature:-25°C to +60°C

Relative Humidity:0% to 95% non-condensing

Power Consumption:Max. 1.5W

Dimensions (WxHxD):59mm x 55mm x 17mm

Net Weight:Approx. 25g

    The Siemens 6DS1104-8AA Clock Pulse Generator Module is engineered to deliver precise timing solutions for demanding industrial automation systems. Its compact design and robust construction ensure reliable operation under a wide range of environmental conditions.

    Featuring an adjustable frequency range from 0 Hz to 50 kHz, this module offers exceptional flexibility for various timing requirements. With a resolution of 1 ns and a maximum load capacity of 100 mA, it ensures accurate and efficient pulse generation.

    Designed with precision in mind, the 6DS1104-8AA supports both square wave output types, providing versatile compatibility with different systems and components. Its high-resolution capabilities make it ideal for synchronization tasks requiring high precision.

    Equipped with an operating temperature range of -25°C to +60°C, this module can withstand harsh industrial environments without compromising performance. Its lightweight design and compact size facilitate easy integration into existing systems, enhancing efficiency and reducing installation time.

    Backed by Siemens’ reputation for quality and reliability, the 6DS1104-8AA Clock Pulse Generator Module is a trusted choice for engineers and technicians seeking precise timing solutions for their industrial automation projects.
