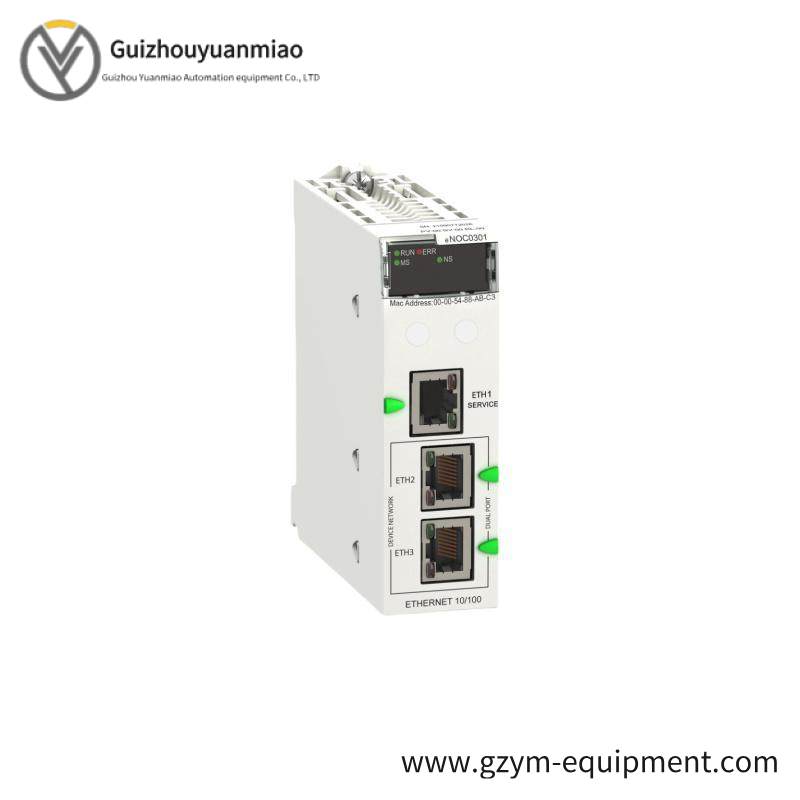

Schneider Electric BMENOC0301 Ethernet Communication Module, Industrial Control Solutions

Network Module Type:Ethernet Communication Module

Model:BMENOC0301

Compatible Product Range:Modicon M580

Transmission Rate:10/100 Mbit/s

Connector Type:RJ45

Connection Type:Integrated 3 Ethernet Ports

Transmission Mode:Double Shielded Twisted Pair

Backplane Compatibility:Ethernet

Communication Services:[“Bandwidth Management”,”FDR Server”,”SNMP”,”Modbus TCP”,”I/O Scanner & Messaging”]

Ethernet Support:Ethernet/IP

Port Mirroring:Enabled

Embedded Multiport Switch:Integrated

Power Supply:Internal via Rack

Current Consumption:555 mA at 3.3V DC

Net Weight:0.2 kg

    The Schneider Electric BMENOC0301 Ethernet Communication Module is an essential component for enhancing the connectivity and efficiency of industrial control systems. Designed with advanced features, it ensures seamless integration with the Modicon M580 PLC family, providing reliable and high-speed data transmission.

    Featuring three integrated Ethernet ports equipped with RJ45 connectors, this module supports both 10/100 Mbit/s transmission rates, making it suitable for a wide range of industrial applications. The use of double shielded twisted pairs enhances signal integrity and reduces electromagnetic interference.

    With support for various communication services including bandwidth management, FDR server, SNMP, Modbus TCP, and I/O scanner & messaging, the BMENOC0301 facilitates a comprehensive network solution, improving operational efficiency and data flow within the system.

    For those requiring compatibility with different Ethernet standards, the Ethernet/IP support ensures flexibility and interoperability with other Ethernet-based devices. The built-in port mirroring feature provides enhanced troubleshooting capabilities, while the integrated multiport switch streamlines network management.

    Equipped with an internal power supply through the rack, the BMENOC0301 offers a compact design and simplified installation process. Its low current consumption and lightweight construction contribute to its energy efficiency and ease of deployment in various industrial environments.
