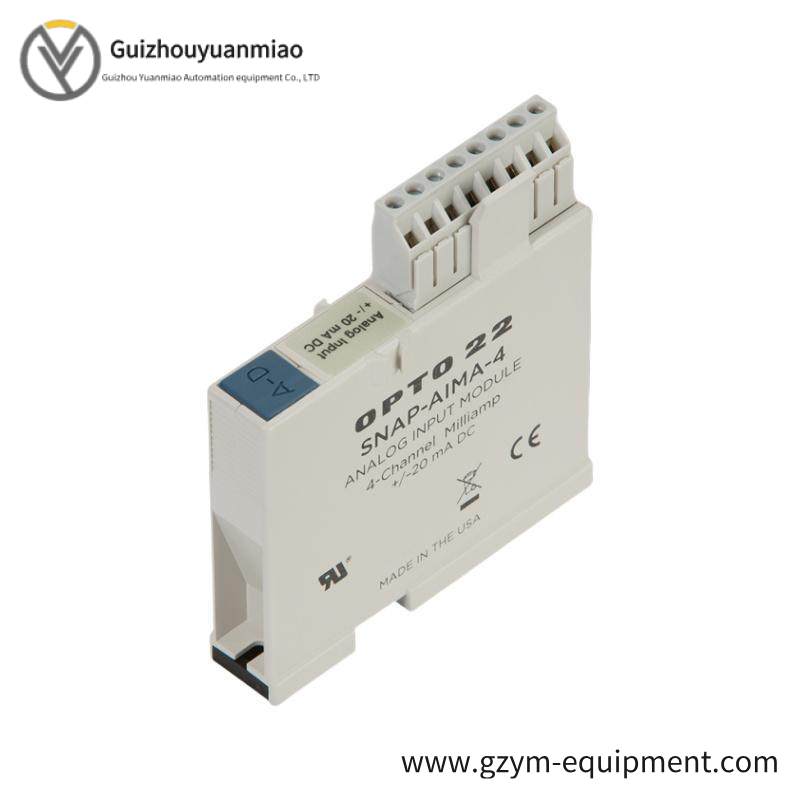

Opto 22 SNAP-AIMA-4: 4-Channel Analog Current Input Module

Product Type:Analog Current Input Module

Model:SNAP-AIMA-4

Extended Product Type:Other

Opto Type Designation:Other

Number of Channels:4

Wire Size:22 to 14 AWG

Nominal Input Voltage:28 VDC

Input Voltage Range:18–32 VDC

Data Transfer Protocol:Internal web server

Error Handling:4-character, alpha-numeric, scrolling LED display

Network Configuration:ProSoft Discovery Service (PDS)

Memory Storage:Non-volatile industrial-grade Compact Flash (CF) card

    The Opto22 SNAP-AIMA-4 is a state-of-the-art module that enables accurate and reliable measurement of current signals within industrial automation applications. Its compact design and high precision make it an ideal choice for applications requiring precise current sensing.

    Equipped with a 12-bit Analog-to-Digital Converter (ADC), this module ensures exceptional signal resolution and dynamic range, delivering accurate readings even under fluctuating conditions. Its wide operating voltage range from 18V to 32V DC allows for compatibility with various power sources commonly found in industrial settings.

    Featuring a robust temperature range of -40°C to +85°C, the SNAP-AIMA-4 is engineered to withstand harsh industrial environments, ensuring dependable operation across a wide range of conditions. This makes it suitable for use in demanding applications where reliability is paramount.

    For seamless integration into existing control systems, the module supports popular communication protocols including Profinet, EtherCAT, and DeviceNet. This compatibility simplifies setup and integration, streamlining system configuration and reducing downtime.

    With its compact footprint of 24mm x 24mm x 9mm, the SNAP-AIMA-4 is designed for efficient PCB mounting, allowing for space-saving installations without compromising performance. The included mounting hardware ensures secure installation and easy integration into any industrial setup.
