Model Type:Axis Module
Input Power:460V AC Three-Phase
Inverter Section Rating:45A
Required Control Module:1
IAM Power Module:1
Dimensions:5.5 x 11.9 x 14.7 inches
Weight:7.0 lbs (3.18 kg)
Integrated Motion Capability:Yes
Safe Torque Off Function:Certified ISO 13849-1 PLe/SIL 3
EN954-1 Category 3 Compliance:External Relay Required
Nominal Drive Voltage:400V AC
Peak Current:53.0 A
Continuous Output Current:21.2 A
Output Current:30 Amperes
Wattage:13 kWatts
Dimensions (in):2.76 x 11.9 x 13.2 in
Dimensions (mm):70 x 302 x 336 mm

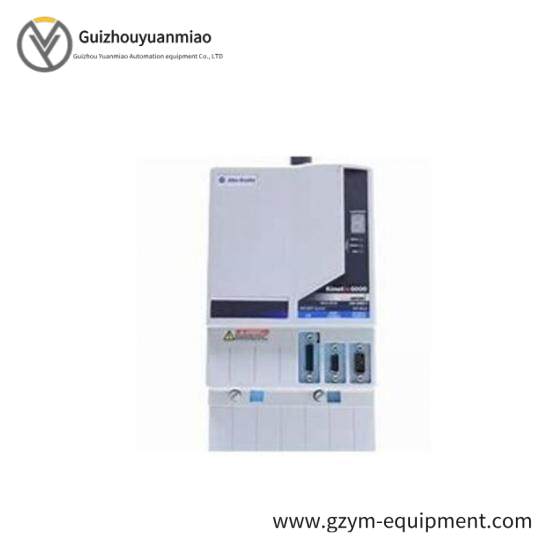

The 2094-BM05-M modular multi-axis servo drive from our Kinetix 6200 series is designed to enhance productivity and precision in industrial automation processes. Its robust design ensures reliable performance even under the most challenging conditions.
Equipped with a 45A inverter section and requiring just one control module with an IAM power module, this servo drive offers efficient power management for your machinery needs. The 2094-BM05-M is an ideal choice for applications requiring high torque and speed control.
Featuring a compact yet sturdy build measuring 5.5 x 11.9 x 14.7 inches (140 x 302 x 373 mm), it is lightweight at 12 lbs (5.4 kg), making it easy to integrate into various industrial setups. The drive is compatible with the Kinetix 6000 servo drive, enabling seamless upgrades and compatibility.
One of its standout features is the integrated safety function, Safe Torque-Off (STO), which complies with ISO 13849-1 PLe/SIL 3 standards. This ensures that in case of a safety issue, the drive safely disengages from the system, preventing accidental restarts and protecting personnel and equipment.
Additionally, the 2094-BM05-M is designed for high efficiency, boasting an impressive 98% efficiency rate. It supports short-circuit current up to 200,000 A (rms) symmetrically, providing unparalleled reliability and safety in industrial operations.
