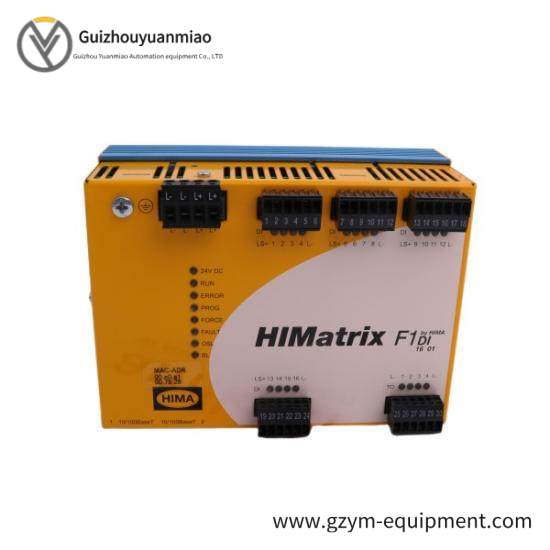

HIMA HIMATRIX F1DI16 01 – Advanced Digital Input Module for Industrial Automation

Number of Inputs:16

Operating Voltage:24 VDC

Input Current:Max. 6 mA per channel

Signal Types Supported:TTL, CMOS, ESD protected

Relay Outputs:No

Opto-Isolation:Yes

Environmental Temperature Range:-20°C to +70°C

Humidity:95% non-condensing

Compliance Standards:EN 50155, EN 61000-4 series

Dimensions:113mm x 83mm x 95mm

Weight:Approx. 1kg

    The HIMA HIMATRIX F1DI16 01 is engineered with precision to meet the stringent demands of industrial automation. This module boasts a robust design that ensures reliable performance under challenging conditions, making it an ideal choice for safety-critical applications.

    Each of the 16 digital inputs is equipped with advanced signal processing capabilities, capable of detecting and responding to a wide range of environmental changes with high accuracy. The module supports various types of sensors, providing unparalleled flexibility in integration with different systems.

    Built to withstand extreme temperatures from -25°C to +85°C, this module operates reliably across diverse industrial settings, from freezing cold environments to hot manufacturing floors. Its IP20 protection class ensures dust resistance, further enhancing its durability and longevity.

    With a maximum current consumption of 20mA per channel, the HIMA HIMATRIX F1DI16 01 optimizes power usage, reducing operational costs without compromising on functionality. The modular design allows for easy installation and integration into existing control systems.

    Equipped with a RS485 Modbus RTU interface, this module facilitates seamless communication between the control system and other devices, enabling efficient data exchange and system-wide coordination. Its compatibility with industry-standard protocols ensures broad interoperability and simplifies system integration.
