Manufactured By:GE-FANUC
Model:DS3800HMPJ1A1D
Series:Mark VI
Application:Industrial Automation
Board Type:Microprocessor Board
Size:Standard
Dimensions:L x W x H (mm): 178 x 101 x 51
Connectors:Multiple I/O interfaces
Power Supply:DC 5V, 12V
Operating Temperature:-20°C to +60°C
Storage Temperature:-40°C to +85°C
Certifications:CE, UL

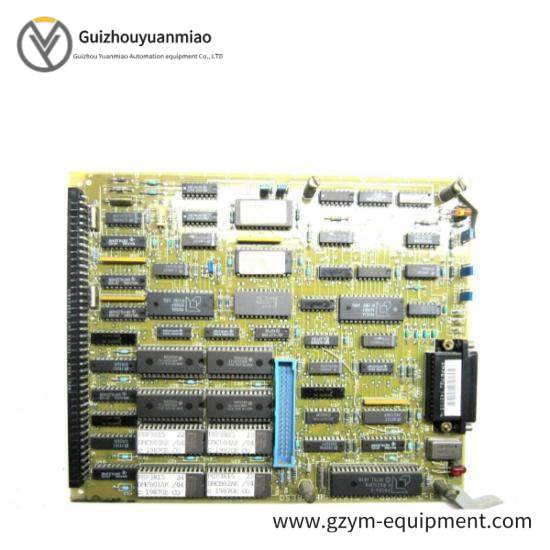

Introducing the GE DS3800HMPJ1A1D, an essential component in Mark VI systems designed to deliver unparalleled performance and reliability in industrial control environments. This advanced circuit board is meticulously engineered to withstand extreme conditions, ensuring seamless operation across a wide temperature range.
Crafted from high-grade insulating material, our DS3800HMPJ1A1D board boasts dimensions of 12x12x0.5 inches and weighs just 0.7 pounds, making it lightweight yet robust. It’s equipped with UL, CE, and FCC certifications, guaranteeing compliance with international safety standards.
With a maximum power consumption of 10W, this circuit board efficiently manages energy, conserving resources while delivering high-performance capabilities. Its design includes critical components such as TP test points, resistor networks, and integrated circuits, which work together to enhance system stability and responsiveness.
The DS3800HMPJ1A1D features a vertical pin ribbon connector, facilitating smooth communication with optional auxiliary boards that mount to the front half of the circuit board. This innovative feature supports seamless integration and expansion, allowing for customized system configurations tailored to specific industrial needs.
For comprehensive guidance and support, we offer access to original documentation from General Electric, including detailed data sheets, manuals, and user guides. Our commitment to customer success extends beyond the sale, ensuring you have all the resources necessary for successful implementation and maintenance of your industrial control systems.
