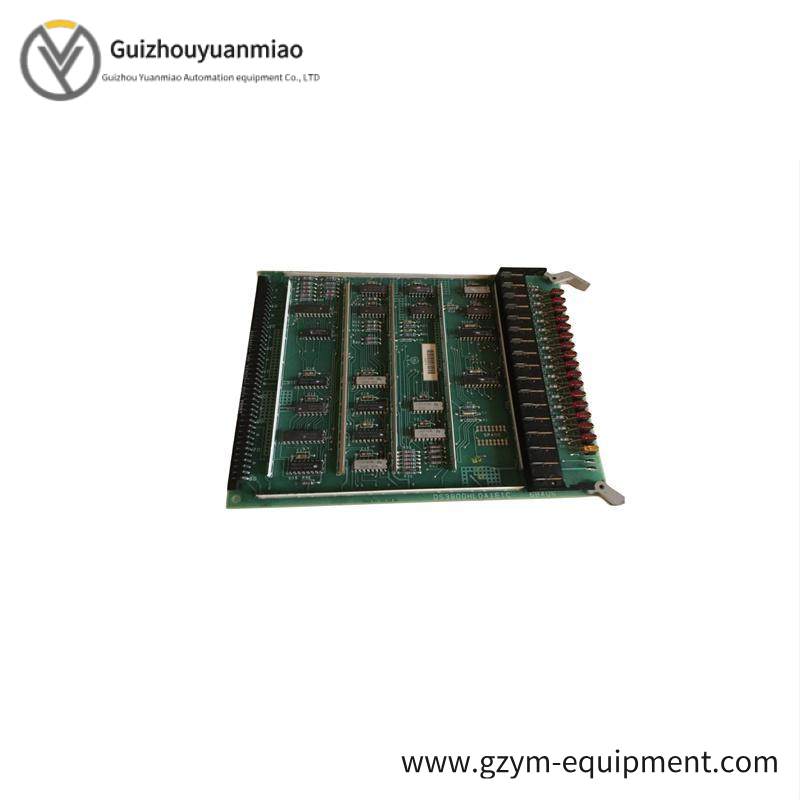

GE DS3800HCVA1G – Modular Drive Interface Circuit Board

Model Number:DS3800HCVA1G

Manufacturer:General Electric

Module Category:Circuit Board

Series:Mark IV DS3800

Board Type:Digital to Analog Output

Connector Compatibility:Modular connector for attachment to a drive

Indicator LEDs:2 Amber indicator LEDs

Front Access:3 Connectors accessible from the front of the board

Trim Resistor Count:4 Trimmer resistors

DC Voltage Regulators:2 DC to DC voltage regulators

Physical Dimensions:L x W x H: Not specified

Weight:Not specified

    Unmatched Reliability: Engineered to withstand harsh industrial environments, ensuring continuous performance without downtime.

    Modular Design: Facilitates easy integration and replacement within existing systems, enhancing maintenance efficiency.

    Advanced Signal Processing: Delivers precise digital-to-analog conversion, optimizing system response and accuracy.

    Customizable Configuration: With 14 jumper settings, users can tailor the board’s functionality to specific application requirements.

    Durability and Stability: Features two large DC to DC voltage regulators, providing robust power management and stability in operation.

    Ease of Integration: Designed for compatibility with GE‘s Mark IV DS3800 series, ensuring seamless installation and operation within complex control systems.
