Voltage Rating:1500 V rms
Compatibility:J, K, and M-style Mark V Series frame components
Number of Wire Jumpers:4
Board Position:Located behind the drive control and power supply board
Mounting Method:Secured with two boards onto a board carrier using six plastic holders
Standardized Components:Mark V Series-standardized voltage-limiting hardware components

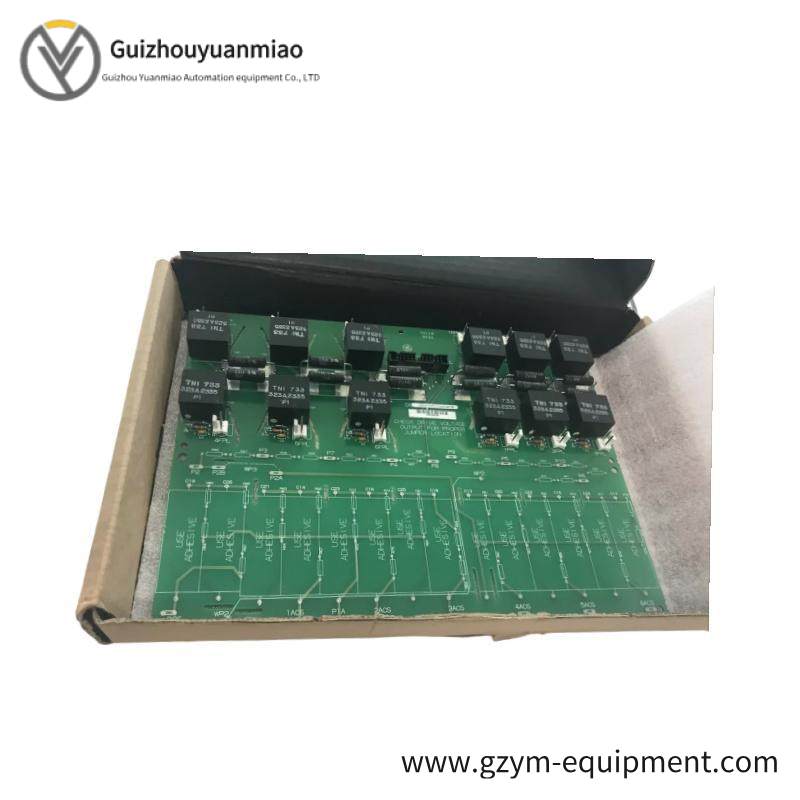

The DS200PCCAG5ACB is meticulously crafted to withstand the rigors of industrial environments, ensuring seamless integration into existing control systems. Its design highlights include a compact yet durable construction, tailored specifically for optimal performance within GE‘s renowned Mark V series.
Each drill hole on the base circuit board is meticulously ringed with insulation, enhancing safety and minimizing the risk of electrical hazards. This attention to detail is indicative of GE‘s commitment to quality and reliability.
Leg reactors and fuses are strategically employed to safeguard against overvoltage conditions, guaranteeing system stability even under challenging operational scenarios. The use of separate or common bus transformers ensures efficient and reliable power distribution, crucial for maintaining the smooth operation of industrial machinery.
With a maximum AX voltage rating of 1500 V, the DS200PCCAG5ACB is designed to handle demanding power requirements, making it an indispensable addition to turbine control systems. Its compatibility with J, K, and M-style components further enhances its utility across a wide range of applications.
The DS200PCCAG5ACB is equipped with a total of four wire jumpers (WP4, WP3, JP2, and JP1), providing users with flexibility in configuring the card to suit specific system requirements. This feature, combined with its secure attachment mechanism using two boards and six plastic holders, ensures a stable installation process.
