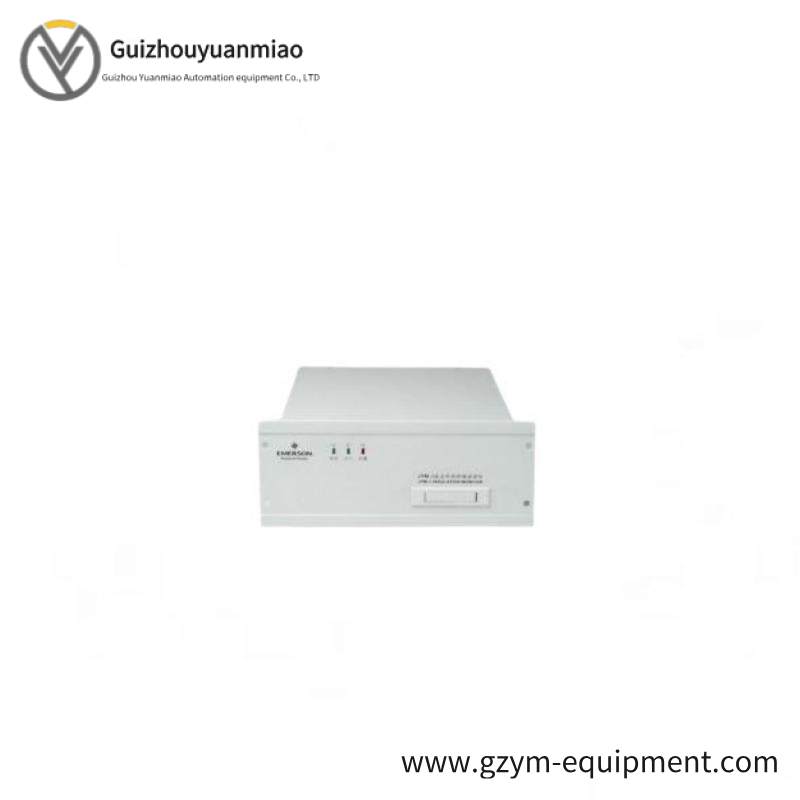

EMERSON JYM-S2 Insulation Monitor – High Precision, Reliable Condition Monitoring Module

Operating Frequency:100 Hz

Measuring Range:0.01MΩ to 1000MΩ

Accuracy:+/- 2% of reading

Alert Thresholds:Customizable, configurable alerts

Communication Interface:RS485 Modbus RTU

Power Supply:AC 90V to 264V or DC 24V

Dimensions:144mm x 144mm x 75mm

Operating Temperature:-20°C to +60°C

Protection Class:IP20

    The EMERSON JYM-S2 Insulation Monitor is engineered to deliver unparalleled performance in monitoring the health of electrical insulation within critical industrial machinery and systems. Its advanced algorithms and robust design enable it to detect even the slightest signs of insulation degradation, allowing for timely maintenance interventions and preventing unexpected failures.

    With an operating range from 0°C to +50°C and a relative humidity tolerance of 10% to 95% non-condensing, this monitor is built to withstand harsh industrial environments. Its accuracy of ±5% of reading ensures reliable data collection and analysis, providing operators with precise insights into their system’s condition.

    Equipped with a DC 12V input voltage range that accepts a 20% deviation, the JYM-S2 is versatile and adaptable to various power sources commonly found in industrial settings. Its quick response time of less than 2 seconds ensures immediate alerts upon detection of anomalies, enhancing operational efficiency.

    Featuring a single Form C relay contact rated for 250VAC / 30VDC at 1A for alarm outputs, the monitor seamlessly integrates with existing control systems, facilitating easy installation and integration. Its low power consumption of typically less than 50mA helps conserve energy, making it an environmentally friendly choice for long-term operation.

    Crafted with high-quality materials for durability and reliability, the EMERSON JYM-S2 Insulation Monitor is designed to last under the toughest conditions. Its user-friendly interface and comprehensive diagnostic capabilities make it accessible to technicians and engineers alike, ensuring efficient and effective use in diverse industrial applications.
