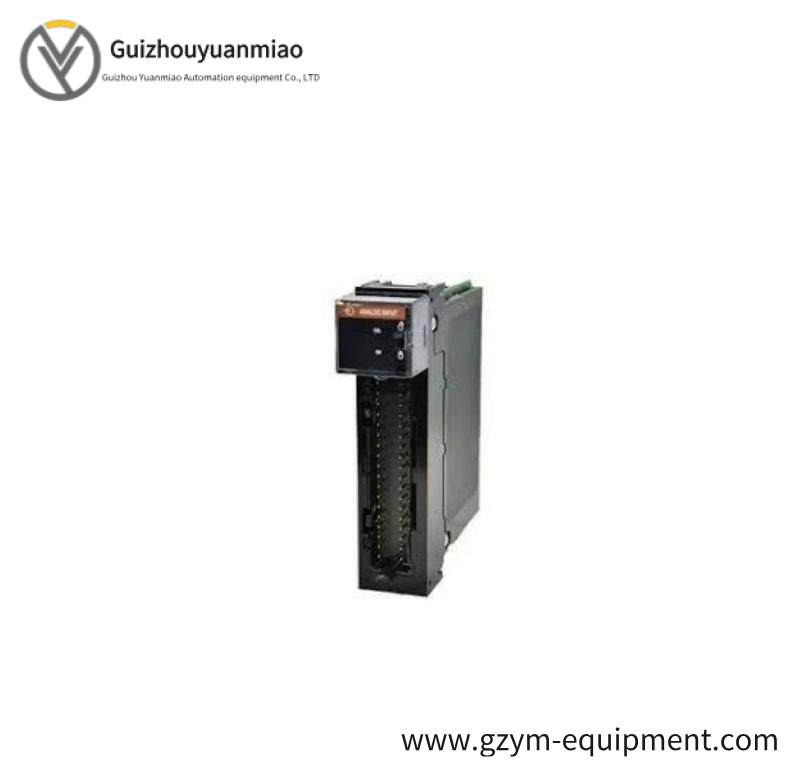

Allen-Bradley AB 1756-IF8 ControlLogix 8-Point Analog Input Module

Model Type:ControlLogix

Model Number:1756-IF8

Manufacturer:Allen-Bradley

Input Channels:8

Analog Type:Voltage and Current

Differential Input:Yes

Operating Range:4-20 mA, 0-10 VDC

Sampling Rate:10 kHz

Data Format:Binary, Engineering Units, Raw Value

Power Consumption:≤ 1.2 W

Dimensions:2U, 12.3 x 6.7 x 1.5 inches

Weight:1.0 lbs

    Engineered for industrial precision, the Allen-Bradley AB 1756-IF8 offers unparalleled accuracy in data acquisition for ControlLogix systems. Its robust design ensures reliable operation in harsh industrial conditions, making it a cornerstone for automation projects.

    Each channel on the AB 1756-IF8 is equipped to handle differential voltage or current inputs, offering flexibility and adaptability to a wide range of applications. The module supports multiple data formats, allowing seamless integration with various control systems and software platforms.

    Equipped with advanced features such as real-time sampling, range detection, and process alarms, the AB 1756-IF8 ensures that critical data is captured and processed efficiently. It also includes wire-off detection capabilities, which help prevent downtime and ensure operational safety.

    The integrated filter and customizable input ranges cater to diverse industrial requirements, from high-frequency signals to low-level sensor readings. This makes the module suitable for applications ranging from process control to monitoring systems in complex manufacturing environments.

    Built for durability and efficiency, the Allen-Bradley AB 1756-IF8 is designed to withstand the demands of continuous operation. Its compatibility with the HART communication protocol enables easy setup and maintenance, facilitating seamless integration with existing network infrastructures.
