Input Voltage (AC):230 – 480 V rms, 3 phases
Input Frequency (AC):47 – 63 Hz
Internal Shunt Resistance:120 ohms
Shunt On Rating (DC):800 V
Output Voltage (AC):230 VAC / 460 VAC, 3 phases
Programmable Frequency Range:0-400 Hz
Maximum Continuous Output Current:7 amperes
Maximum Peak Output Current:14 amperes
Dimensions (WxDxH):9.54 x 14.2 x 5.46 inches (242.2 x 360.7 x 138.7 mm)

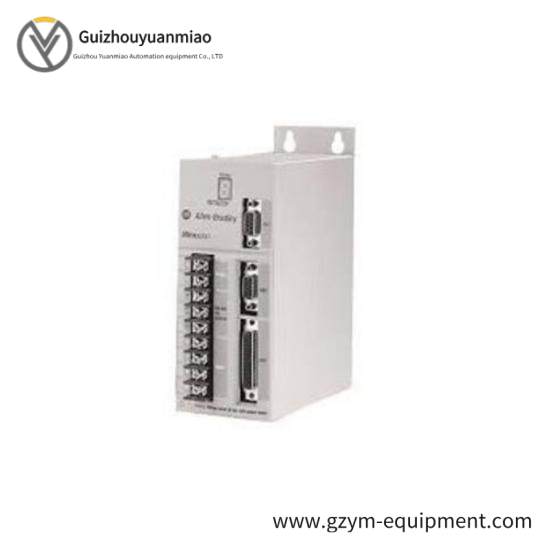

The Allen-Bradley 2098-DSD-HV030-SE boasts advanced features for precise and reliable operation, making it an ideal choice for demanding industrial applications. Its robust design ensures long-lasting performance under challenging conditions.
This digital servo motor is equipped with an internal shunt resistance of 120 ohms, enabling efficient current control. Its compatibility with multi-turn absolute encoders enhances its functionality, supporting external logic power and maintaining accuracy.
With a wide input voltage range of 230 to 480 Vrms and 3-phase capabilities, the 2098-DSD-HV030-SE can operate in a variety of industrial settings. Its programmable frequency range from 0 to 400 Hz allows for flexible speed adjustments, optimizing performance across different tasks.
The motor’s ability to handle maximum continuous output currents of 7 amperes and peak currents up to 14 amperes ensures it can deliver consistent torque and power to drive complex machinery or mechanisms.
Designed for ease of integration, the 2098-DSD-HV030-SE seamlessly connects to various control systems via its support for standard communication protocols. This integration capability facilitates remote control and configuration, enhancing operational flexibility and efficiency.
