Connector Type:Coaxial BNC
Operating Frequency:DC to 1 GHz
Maximum Voltage:500V DC
Insulation Resistance:≥ 10^10 ohms @ 500V DC
Operating Temperature Range:-40°C to +85°C
Material:Dielectric: Polytetrafluoroethylene (PTFE), Housing: Zinc Diecast
Impedance:50 Ohms
Connectivity:Bayonet Lock Mechanism

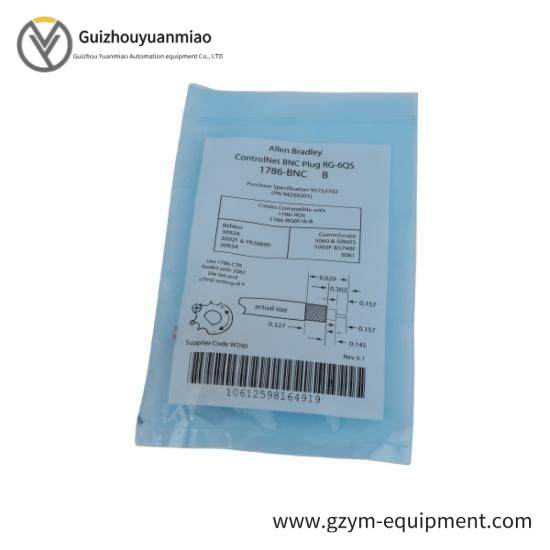

The Allen-Bradley 1786-BNC RG6 Coaxial Connector is engineered for optimal performance in demanding industrial environments, featuring robust construction and superior signal handling capabilities. It is specifically tailored for ControlNet media applications, delivering high-speed data transfer with minimal signal loss.
Designed with a durable zinc diecast housing and PTFE dielectric, this connector ensures excellent mechanical strength and chemical resistance, making it suitable for both indoor and outdoor installations. Its bayonet lock mechanism facilitates quick and secure connections, enhancing operational efficiency.
This connector supports a wide operating frequency range from direct current to 1 GHz, accommodating various industrial protocols and ensuring reliable communication across different systems. Its high insulation resistance ensures minimal interference and maintains signal integrity under varying environmental conditions.
Ideal for applications requiring precise timing and synchronization, the Allen-Bradley 1786-BNC RG6 Coaxial Connector is compatible with a wide array of control systems, including PLCs and other automation equipment. It can withstand extreme temperatures ranging from -40°C to +85°C, making it suitable for harsh industrial settings.
For enhanced user convenience, the connector includes an intuitive bayonet locking system that allows for easy insertion and removal of cables. This feature, combined with its IP67-rated sealing, ensures protection against dust and water ingress, guaranteeing consistent performance even in challenging environments.
