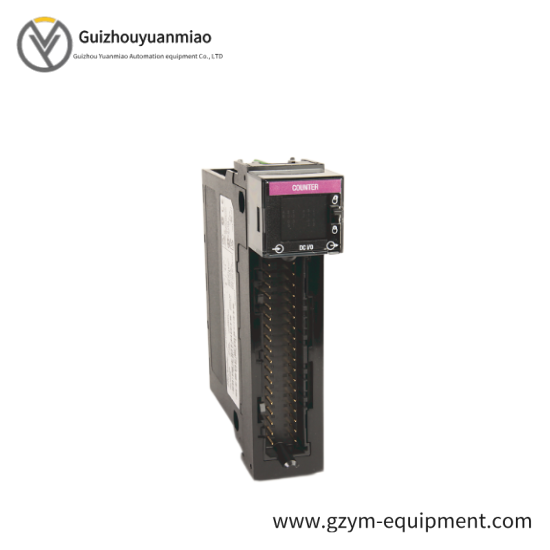

Allen Bradley 1756-HSC High Speed Counter Module, Advanced Manufacturing Control Solution

Manufacturer:Allen Bradley

Model Number:1756-HSC

Capacity:Up to 64,000 counts per second

Communication Protocol:ControlNet

Input Channels:16

Output Channels:8

Operating Temperature:-40°C to 70°C

Power Consumption:5W

Enclosure Type:IP20

Dimensions (WxHxD):117 x 33 x 93 mm

Weight:0.22 kg

    The Allen Bradley 1756-HSC High Speed Counter Module is designed for applications requiring precise measurement and timing of high-frequency events. Its robust construction ensures reliability in harsh industrial environments.

    This module supports both ControlLogix Ethernet/IP protocols for seamless integration into existing automation systems, offering high-speed data transmission rates of up to 10/100 Mbps.

    With an open enclosure design, the 1756-HSC is versatile for mounting options and ensures easy access for maintenance and diagnostics.

    Equipped with advanced signal processing capabilities, the module accurately counts and measures events at high speeds, minimizing errors and ensuring precise control over machinery and processes.

    The 1756-HSC is compatible with shielded or unshielded twisted pair cables, adhering to IEEE 802.3 standards, which ensures reliable communication even under noisy industrial conditions.

    Its operating temperature range of 0 to 60°C and ability to withstand vibrations and shocks make it suitable for use in various industries including manufacturing, packaging, and material handling.
