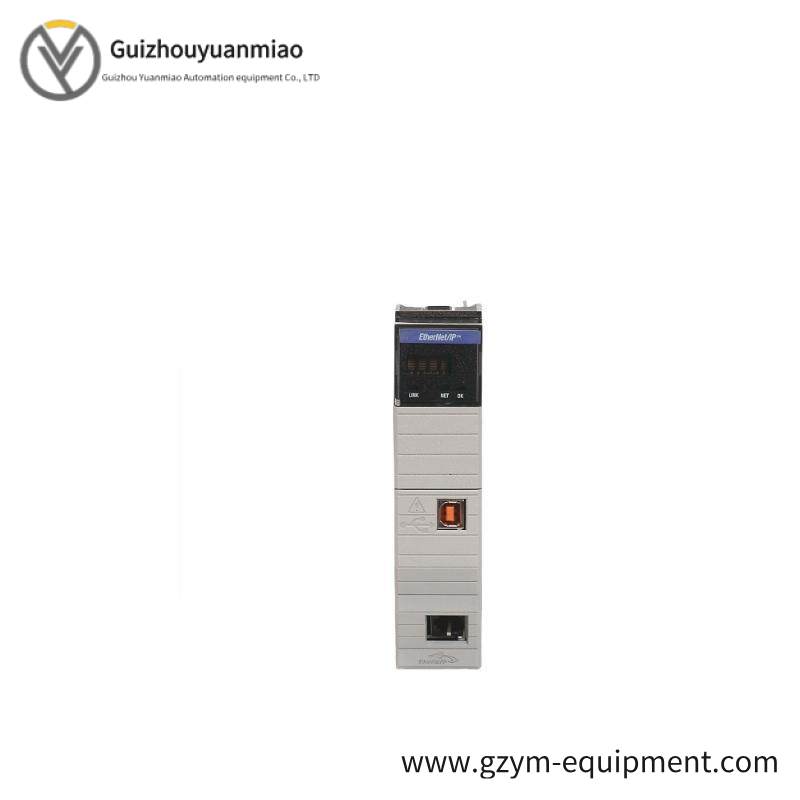

Allen-Bradley 1756-EN2TK Ethernet Bridge Module: Industrial Networking Innovation

Model Type:Bridge Module

Model Number:1756-EN2TK

Manufacturer(s):Allen-Bradley

Communication Protocol:EtherNet/IP

Mounting:Chassis

Communication Speed:10/100 Mbps

Temperature Rating:0 – 60°C

Power Dissipation:5.1 W

Isolation:30 V Continuous

Environmental Conditions:5 – 95% Non-Condensing Relative Humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Enclosure Type:Open Type

Connection Cables:802.3 Compliant Shielded or Unshielded Twisted Pair

Power Supply:3 MA at 24 VDC

    The Allen-Bradley 1756-EN2TK Ethernet Bridge Module is a high-capacity device designed to streamline integration between ControlLogix PLC systems and EtherNet/IP networks. Its robust design ensures reliable data transmission in a wide range of industrial settings.

    Featuring a modular architecture, this bridge module can be easily integrated into existing ControlLogix systems without compromising performance or functionality. It supports 10/100 Mbps communication speeds, providing flexibility and efficiency in network communication.

    With a temperature rating from 0 to 60 degrees Celsius, the 1756-EN2TK is suitable for a variety of industrial environments. Its low power dissipation of 5.1 watts makes it energy-efficient, reducing operational costs and enhancing system reliability.

    The module’s open-type enclosure provides easy access for maintenance and customization, while its compatibility with shielded or unshielded twisted pair cables ensures flexibility in installation. Additionally, its vibration resistance of 2 G and shock resistance of 30 G make it durable under harsh industrial conditions.

    Equipped with an advanced communication protocol, the Allen-Bradley 1756-EN2TK Ethernet Bridge Module enables seamless data exchange between ControlLogix PLCs and EtherNet/IP networks, optimizing productivity and efficiency in manufacturing processes.
