Model Type:SLC500
Model Number:1746-NI16I
Manufacturer:Allen Bradley
Number of Channels:16
Common Mode Voltage Range:+/- 10.25 V relative to Analog Common Terminal
Type of Input:Plus/Minus 20 MA, 4 – 20 MA, 0 – 1 MA, 0 – 20 MA
Maximum Voltage Input Without Damage:+/- 8 V between any two signal terminals
Current Rating:Backplane: 125 MA at 5 VDC, 75 MA at 24 VDC, Current Input: +/- 30 MA
Isolation:500 VAC isolation for 1 sec
Power Rating:Backplane: 2.425 W, Enclosure: Open Type

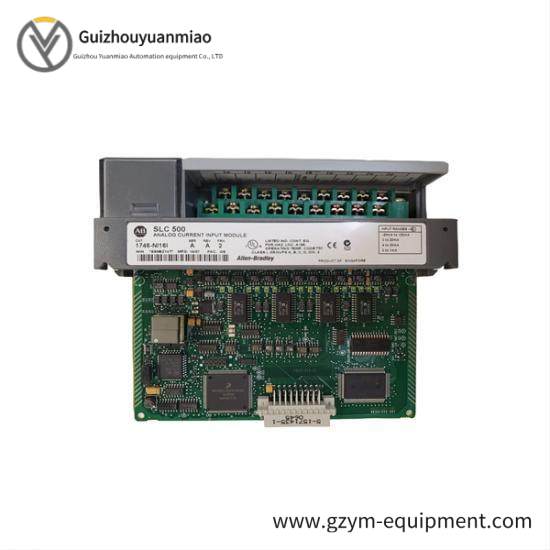

Engineered with precision, the Allen Bradley 1746-NI16I is a 16-point analog input module that seamlessly integrates into your industrial control system, ensuring accurate and stable signal acquisition.
This module boasts a wide common mode voltage range, making it robust against noise and interference in harsh industrial settings.
Featuring a flexible input type, it supports various current ranges, from 4-20 MA to 0-20 MA, allowing for versatile integration with different sensors and measurement devices.
With its ability to withstand voltage inputs without damage and a high current rating, the 1746-NI16I ensures reliable operation under varying conditions, enhancing system reliability.
The 500 VAC isolation feature guarantees enhanced safety and protection against electrical hazards, making it suitable for applications where safety is paramount.
Designed for open-type enclosures, this module offers easy installation and maintenance, further simplifying system management in industrial environments.
