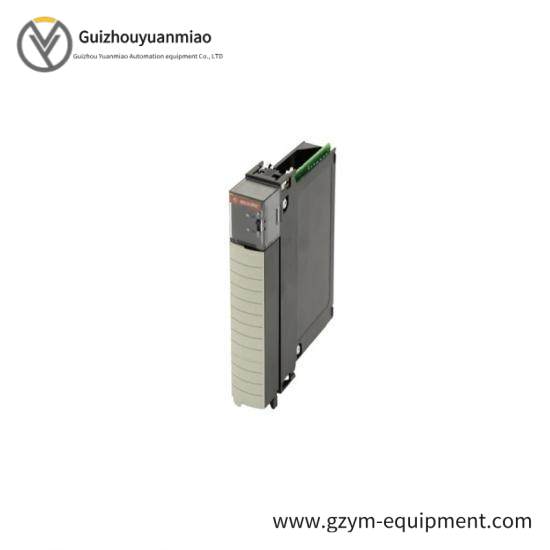

Advanced 1756-IF8 ControlLogix Analog I/O Modules: Precision & Reliability in Industrial Automation

Model Type:ControlLogix

Model Number:1756-IF8H

Manufacturer:Allen-Bradley

Weight:1.00 lbs

I/O Module Type:Analog Hart Interface

Input Channels:8

Differential Voltage or Current:Yes

Data Formats:Choice of three

Input Ranges:Multiple current and voltage

Module Filter:Yes

Real-time Sampling:Yes

Alarm Features:Under range and over range, process, rate, wire-off detection

Communication:Highway addressable remote transducer (HART)

Sampling Frequency:Not specified

Power Supply:Not specified

Mounting:Chassis

Communication Speed:10/100 MBPS

Communication Protocol:Ethernet/IP Bridge

Enclosure Type:Open Type

Connection Cables:802.3 compliant shielded or unshielded twisted pair

Temperature Rating:0 – 60 DEG C

Environmental Conditions:5 – 95% non-condensing relative humidity

Vibration Resistance:2 G

Shock Resistance:30 G

Interface:Ethernet

USB Port:Not specified

    Integrating advanced signal conditioning technology, the AB 1756-IF8 ControlLogix Analog I/O Modules offer exceptional accuracy and reliability, ensuring precise data acquisition and control signals in demanding industrial environments.

    These modules support both voltage and current inputs, making them versatile for a wide range of applications including temperature, pressure, and flow measurements, as well as motor control and other industrial processes.

    Designed with an ergonomic footprint, they seamlessly fit into ControlLogix systems, minimizing installation complexity and maximizing system efficiency. Their robust construction withstands harsh conditions, ensuring longevity and minimal downtime.

    Equipped with multiple communication interfaces, the AB 1756-IF8 facilitates seamless integration with other system components, enhancing overall system performance and connectivity. This feature is crucial for implementing smart, efficient, and interconnected industrial solutions.

    With a low power consumption, these modules optimize energy use without compromising on performance, contributing to sustainable manufacturing practices and cost savings. Their wide operating temperature range ensures reliable operation in diverse global locations.
