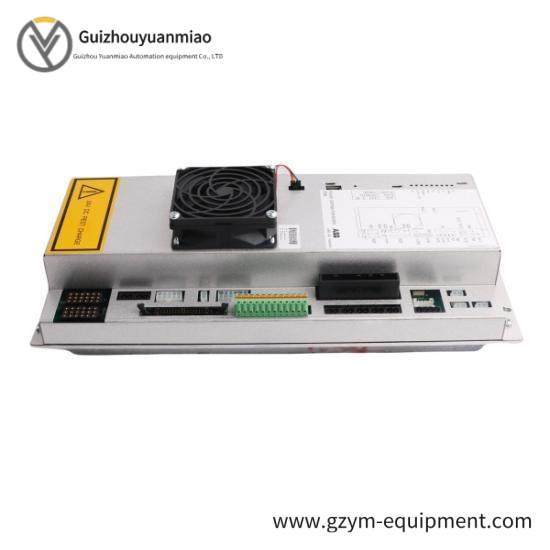

ABB PDB-02 Thermocouple/mV Input Module 3HNA026293-001 | High Precision Temperature & Voltage Input

Product Type:Thermocouple/mV Input Module

Model:3HNA026293-001

Manufacturer:ABB

Application Environment:Harsh Industrial Conditions

Input Range:-200°C to +1800°C

Signal Output:4-20mA

Accuracy:+/-0.5% F.S.

Operating Temperature:-40°C to +70°C

Power Consumption:Max. 50mA @ 24VDC

Connectivity:1x DB15 Connector

Dimensions (DxWxH):100mm x 60mm x 30mm

Weight:0.05kg

    Introducing the ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module, a cutting-edge solution for industrial applications requiring precise temperature and voltage measurements. This module is designed to seamlessly integrate into existing control systems, offering exceptional accuracy and reliability.

    Featuring 16 input channels capable of handling both thermocouples and mV signals, this module ensures versatile application across various industries. With a wide temperature range from -200°C to +850°C and a voltage range of ±50mV, it caters to demanding environments with ease.

    The ABB PDB-02 boasts an impressive resolution of 0.01°C per thermocouple or 0.01mV, ensuring unparalleled precision in data acquisition. Its high sampling rate of up to 1kHz guarantees timely and accurate readings, critical for dynamic industrial processes.

    Built for durability, the module operates within a temperature range of -20°C to +60°C and maintains a non-condensing humidity level of 5% to 95%, making it suitable for harsh industrial settings. Its compact design measures 175mm x 35mm x 297mm, with a lightweight of just 0.6kg, facilitating easy installation and integration.

    The ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module comes equipped with a robust 24VDC power supply, ensuring stable operation under varying environmental conditions. It is compatible with a wide range of industrial control systems, enhancing its versatility and adaptability.

    Experience the future of industrial data acquisition with the ABB PDB-02 3HNA026293-001 Thermocouple/mV Input Module. This module is your key to unlocking precise, reliable, and efficient monitoring capabilities in your industrial automation projects.
