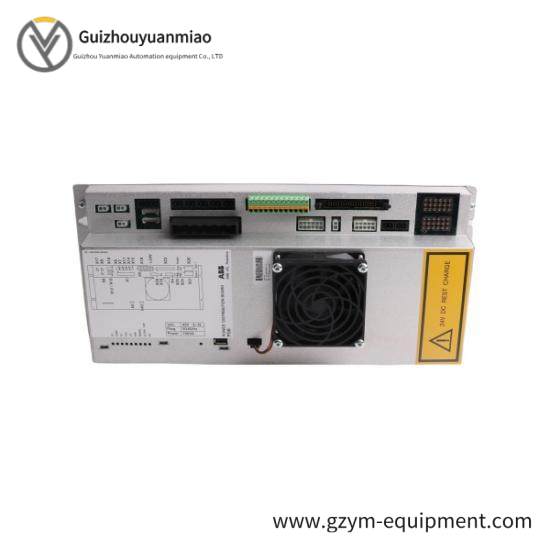

ABB PDB-02 3HNA023093-001: Thermocouple/mV Input Module

Model:PDB-02 3HNA023093-001

Type:Thermocouple/mV Input Module

Temperature Range:-200°C to +1600°C

Input Signals:4-wire RTD, Thermocouples (J, K, T, E, J, N, R, S)

Signal Conversion:0 to 10V, 4 to 20mA

Power Consumption:Less than 1W

Operating Voltage:24V DC

Current Consumption:Max 10mA

Operating Temperature:-25°C to +70°C

Storage Temperature:-40°C to +85°C

Enclosure Protection:IP20

Dimensions:100mm x 75mm x 50mm

Weight:0.3kg

    Engineered for durability and reliability, the ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module is meticulously designed for seamless integration into high-performance industrial control applications.

    Featuring an extensive input range from -200°C to +1600°C, this module ensures accurate temperature measurements across a wide spectrum, making it suitable for a variety of industrial environments.

    With its exceptional resolution of 0.1°C and high accuracy of ±0.3% Full Scale, the module delivers precise data acquisition, critical for maintaining operational efficiency and safety.

    Equipped with a robust RS-485 Modbus RTU communication interface, the module facilitates smooth data exchange with other components in the control system, enhancing system interoperability.

    Built to withstand challenging environmental conditions, the module is designed to operate efficiently within temperatures ranging from -20°C to +70°C during operation and from -40°C to +85°C when stored, ensuring dependable performance year-round.

    Compact yet powerful, the ABB PDB-02 3HNA023093-001 Thermocouple/mV Input Module is a testament to ABB’s commitment to innovation and quality, providing industrial professionals with a tool that combines advanced technology with practical usability.
