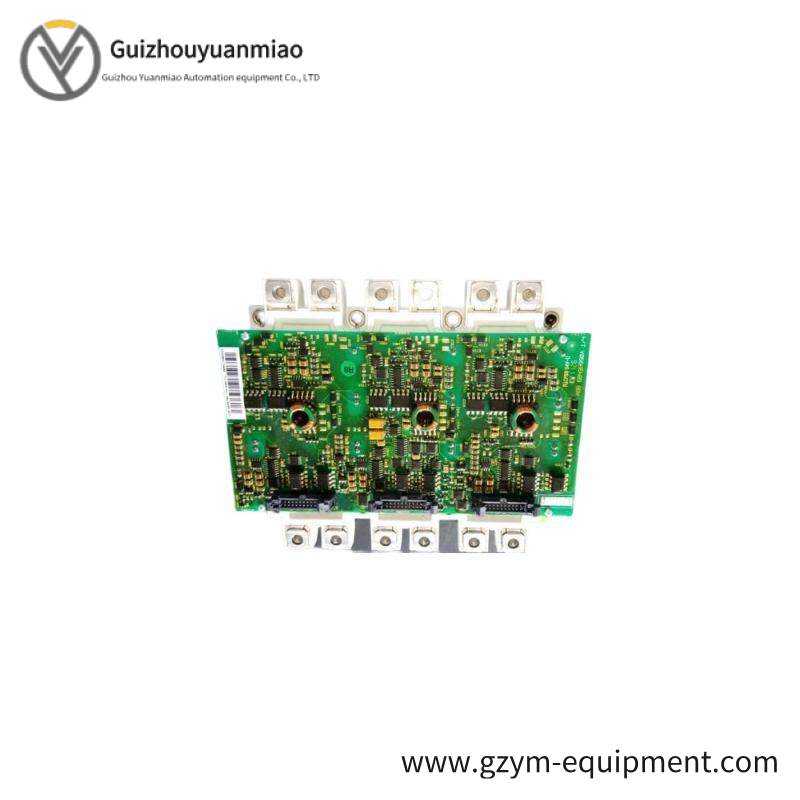

ABB FS225R12KE3/AGDR-71C, IGBT Module for Advanced Industrial Control

Brand:ABB

Model:FS225R12KE3/AGDR-71C

Module Type:IGBT

Rated Current:1200A

Maximum Switching Frequency:12 kHz

Insulation Class:Class F

Cooling Method:Water Cooled

Package Type:Through-Hole

Operating Temperature Range:-40°C to +125°C

Dimensions:L 300mm x W 100mm x H 50mm

Weight:1.6kg

    The ABB FS225R12KE3/AGDR-71C IGBT module is engineered to withstand the rigors of industrial settings, offering unparalleled reliability and efficiency. Its compact size and high power density make it an optimal choice for space-constrained industrial machinery.

    With a power rating of 1200V and 225A, this module is capable of handling high-power loads while maintaining exceptional thermal management through its robust heat dissipation design. This ensures continuous operation under extreme conditions without compromising on performance.

    Equipped with state-of-the-art semiconductor technology, the FS225R12KE3/AGDR-71C boasts a wide operating temperature range from -40°C to +125°C, allowing it to function reliably in various industrial climates. Its high insulation resistance further enhances its durability and safety in harsh environments.

    Featuring a switching frequency of up to 71kHz, the module delivers fast response times, essential for precision control in industrial processes. Its IP20 protection level ensures adequate protection against dust and splash water, ensuring uninterrupted operation even in challenging industrial settings.

    Certified to international standards such as CE, UL, and CSA, the ABB FS225R12KE3/AGDR-71C is a testament to ABB‘s commitment to quality and safety. It is backed by comprehensive documentation and support, providing peace of mind for customers seeking a reliable and efficient solution for their industrial control needs.
