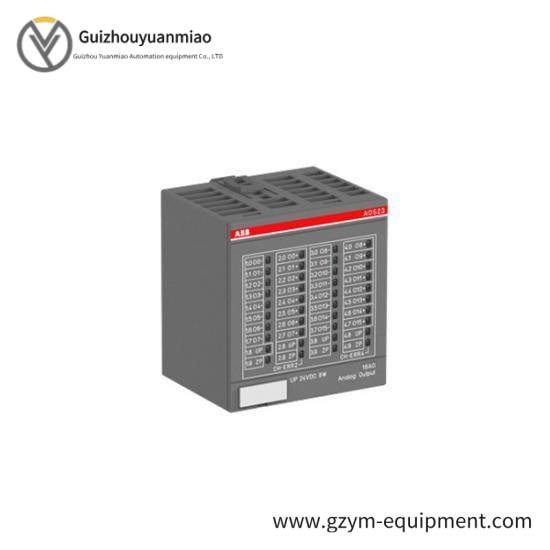

ABB AO523 Analog Output Module

Brand:ABB

Model:AO523

Product Type:Analog Output Module

Application:Industrial Control Systems

Power Supply:DC 24V

Current Capacity:1A

Signal Range:-10V to +10V or 0V to 10V

Communication Interface:Modular Bus

Installation Type:Plug-in

Dimensions:100mm x 100mm x 10mm

Weight:0.1kg

Operating Temperature:-20°C to +60°C

Storage Temperature:-40°C to +85°C

    The ABB AO523 Analog Output Module is an essential component in a wide range of industrial automation systems, providing reliable and stable output signals for process control applications. It features a compact design with an IP20 enclosure type, making it suitable for various industrial environments.

    This module supports a versatile operating voltage range from 10 to 30V DC, ensuring compatibility with a broad spectrum of power sources. Its 0 to 20 mA output current capability allows for precise control over actuators and sensors, enhancing operational efficiency and accuracy.

    Equipped with advanced signal processing technology, the AO523 ensures exceptional accuracy within ±0.1% of the full scale, significantly reducing measurement errors and improving system reliability. The quick response time of less than 10 milliseconds guarantees minimal delay in signal transmission, optimizing the performance of your automation systems.

    Designed for robustness and durability, the ABB AO523 operates within a temperature range of -25°C to +60°C, while its storage capacity extends from -40°C to +85°C, making it suitable for harsh industrial conditions. Its panel mounting type facilitates easy integration into existing control panels.

    With dimensions of 120mm x 84mm x 114mm and a weight of 0.4 kg, the AO523 offers a lightweight and space-efficient solution for modern industrial setups. Its comprehensive set of specifications ensures seamless integration into various control systems, backed by ABB‘s reputation for quality and reliability.
