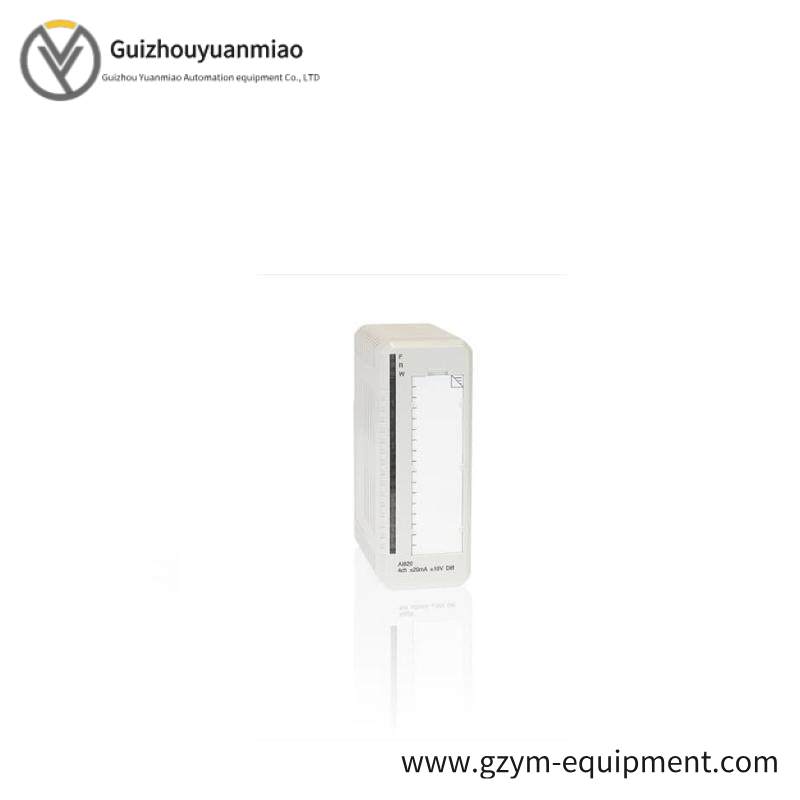

ABB AI820 3BSE008544R1 – 4-Channel Analog Input Module

Number of Input Channels:4

Type of Inputs:Analog

Rated Insulation Voltage:50V

Current Range (DC):+/-20mA

Voltage Range (DC):0(4)…20mA, +/-10V, +/-5V, 0(1)…5V, diff.

Resolution:14 bit

Operating Temperature:-20°C to +60°C

Weight:0.3kg

Dimensions (WxHxD):102 x 19 x 45mm

Connection Type:Terminal Block

    The ABB AI820 3BSE008544R1 Analog Input 4 Channel Module is engineered to enhance operational efficiency and accuracy in industrial environments. Its compact design and robust construction make it ideal for a wide range of applications, from manufacturing lines to complex control systems.

    Featuring high-resolution A/D conversion, this module ensures precise data acquisition, critical for process optimization and quality control. With intrinsic safety certification, it can operate safely in hazardous locations without compromising performance.

    Ease of installation and compatibility with various ABB PLC systems make it a user-friendly solution for integrating into existing infrastructure. Its durable build quality and wide operating temperature range ensure reliability under diverse environmental conditions.

    The AI820 module supports both current and voltage input signals, providing flexibility in measuring various physical parameters such as temperature, pressure, and flow. This versatility makes it suitable for a broad spectrum of industrial applications, enhancing system adaptability and efficiency.

    Designed with reliability and scalability in mind, the ABB AI820 3BSE008544R1 Analog Input 4 Channel Module is an essential component for modern industrial automation setups, aiming to streamline operations and improve productivity.
