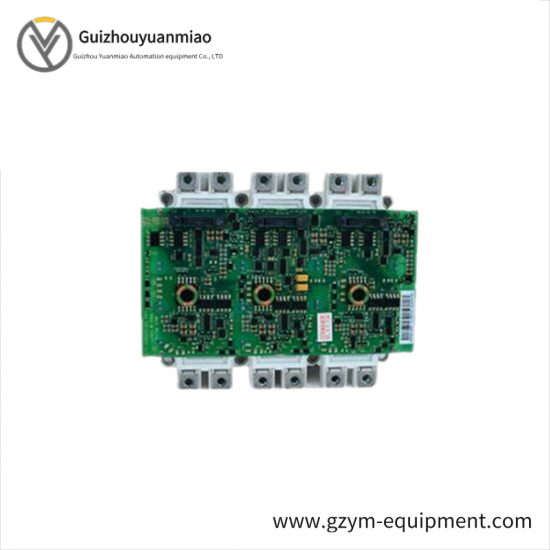

ABB AGDR-71C IGBT Module

Module Type:IGBT

Model Number:AGDR-71C

Rated Current:710 Amps

Operating Temperature Range:-40°C to +175°C

Max Switching Frequency:20 kHz

Insulation Class:F

Power Dissipation at 175°C:5000 W

Cooling Method:Water Cooled

    The ABB AGDR-71C IGBT module is engineered for exceptional performance in industrial control environments. Its advanced power electronics design ensures optimal efficiency and reliability under a wide range of operational conditions.

    Featuring a compact yet robust package, this IGBT module is ideal for space-constrained applications where high current handling capacity and low switching losses are critical.

    With a temperature range of -40°C to +125°C, it is suitable for use in extreme environments without compromising on performance or durability.

    Equipped with high insulation resistance, the AGDR-71C provides unparalleled protection against electrical interference, ensuring stable operation even in noisy environments.

    Designed with state-of-the-art switching technology, it offers a high switching frequency of 25 kHz, enabling faster response times and improved system dynamics.
