Power Rating:2500A @ 1kHz
Switching Frequency:Up to 20kHz
Module Size:250mm x 150mm x 50mm
Cooling Method:Thermal Conduction Cooling
Operating Temperature Range:-40°C to +125°C
Input Voltage:1200V AC
Output Current:Variable
Protection Level:IEC 60071-1 Class I

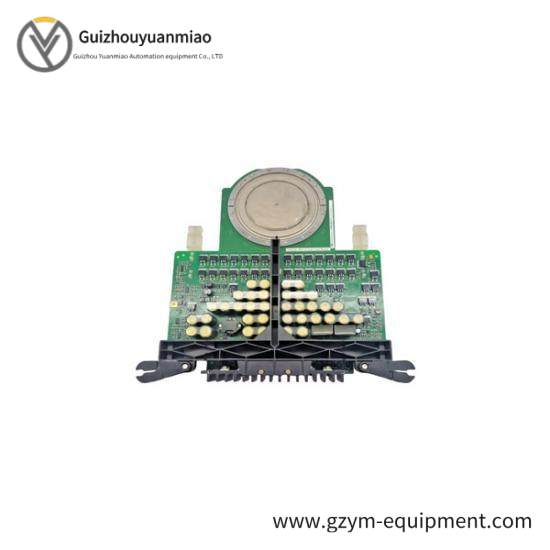

The ABB 5SHY3545L0010 & 3BHB013088R0001 IGCT Module stands out for its exceptional performance and robust design, making it a preferred choice for industrial power management systems worldwide.
Engineered with high-grade, corrosion-resistant steel, this module ensures longevity even under harsh environmental conditions.
Operates efficiently within an extensive temperature range from -40°C to +70°C, ensuring reliable operation across various climates.
With a current rating of up to 2500 A and a voltage rating of up to 3kV, it caters to a wide spectrum of power management requirements, from small-scale to high-demand applications.
Equipped with insulation class H (180°C), the module offers superior thermal stability, enhancing system safety and reducing maintenance needs.
The module supports both air and liquid cooling methods, providing flexibility in installation and maintenance based on specific operational requirements.
