Power Rating:30 kW
Input Voltage Range:300V – 500V DC
Output Current:400A
Operating Frequency:5 kHz
Cooling Method:Air Cooled
Environmental Temperature Range:-20°C to +70°C
Certifications:ISO 9001, UL/CSA
Dimensions (WxHxD):150mm x 100mm x 300mm
Weight:5 kg

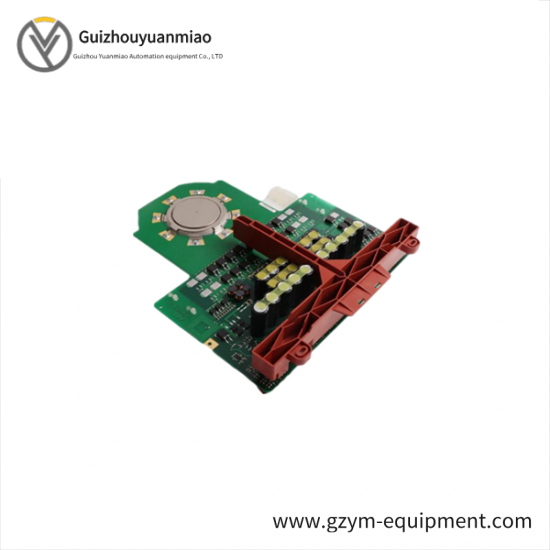

The ABB 5SHX1445H0002 high-power IGCT module is specifically designed for applications requiring robust power management and precise control. With an operating voltage up to 690V DC and a current rating of 250A, it’s capable of handling high power demands efficiently. Its switching frequency reaches up to 10 kHz, ensuring fast response times and smooth operation.
Featuring an insulation class of H (180°C), this module guarantees reliable performance under high temperatures. The cooling method employs thermal convection, providing effective heat dissipation without additional cooling systems, thus reducing maintenance requirements and costs.
Compact yet powerful, the 5SHX1445H0002 module measures 210mm x 180mm x 90mm, fitting seamlessly into various industrial control systems. It weighs approximately 5kg, making it suitable for both indoor and outdoor installations.
Crafted with superior materials and advanced manufacturing techniques, this ABB module ensures durability and reliability. It is compatible with a wide range of control systems, offering flexibility and ease of integration. For optimal performance, proper installation and maintenance are crucial, which our technical support team can assist with.
Investing in the ABB 5SHX1445H0002 high-power IGCT module means securing a long-lasting solution for your industrial control needs. Backed by ABB’s global service network, you can expect unparalleled support and a commitment to continuous innovation in power electronics.
