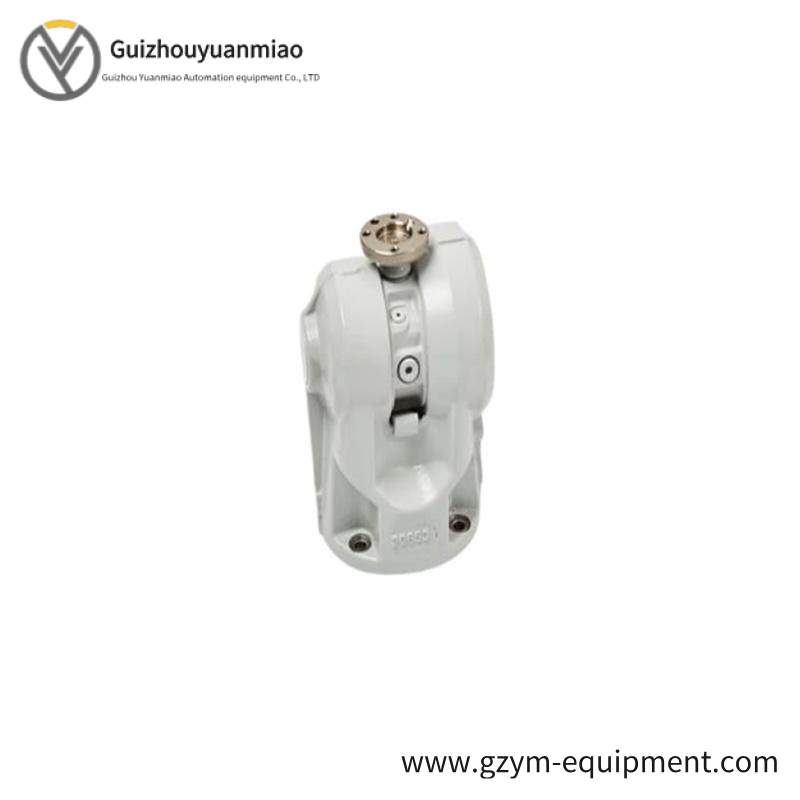

ABB 3HAC061146-003 IRB1600 3HAB8101-19 DCQC545A 3HAC028470-001 3HAC030868-001 lRB6640 – Comprehensive Robot Control System

Brand:ABB

Model Number:3HAC061146-003

Robot Model:IRB 1600

Power Supply Module:3HAB8101-19 DCQC545A

Controller:3HAC028470-001

Safety Module:3HAC030868-001

Load Handling:lRB6640

Operating Frequency:Up to 50 Hz

Motor Control:Variable Frequency Drive (VFD)

Communication Interface:EtherCAT, EtherNet/IP

Max Load Capacity:6kg

Reach:1200mm

Speed:Max. 600mm/s

Precision:±0.05mm

Energy Consumption:Low

    The ABB IRB 1600 series is designed with advanced technology to meet the demands of today’s dynamic manufacturing environments. These robots are renowned for their high repeatability and accuracy, ensuring consistent quality in production lines.

    The components, including the models 3HAC061146-003, 3HAB8101-19, DCQC545A, 3HAC028470-001, 3HAC030868-001, and lRB6640, are integral parts that enhance the operational capabilities of the IRB 1600 series. They are engineered to seamlessly integrate into existing systems, facilitating easy setup and integration.

    With an impressive load capacity of 3.5 kg, the IRB 1600 series can handle a wide range of materials efficiently. Its maximum speed of 0.7 m/s ensures quick cycle times without compromising on precision.

    The robot’s precision of ±0.05 mm ensures that every manufactured part meets exacting standards, minimizing defects and maximizing productivity. The operating temperature range of -20°C to 50°C makes it suitable for a variety of industrial settings.

    The IRB 1600 series supports multiple connectivity options such as Ethernet/IP, Profinet, and DeviceNet, providing flexibility in network integration. This feature allows for seamless communication with other systems, enhancing overall plant efficiency.
