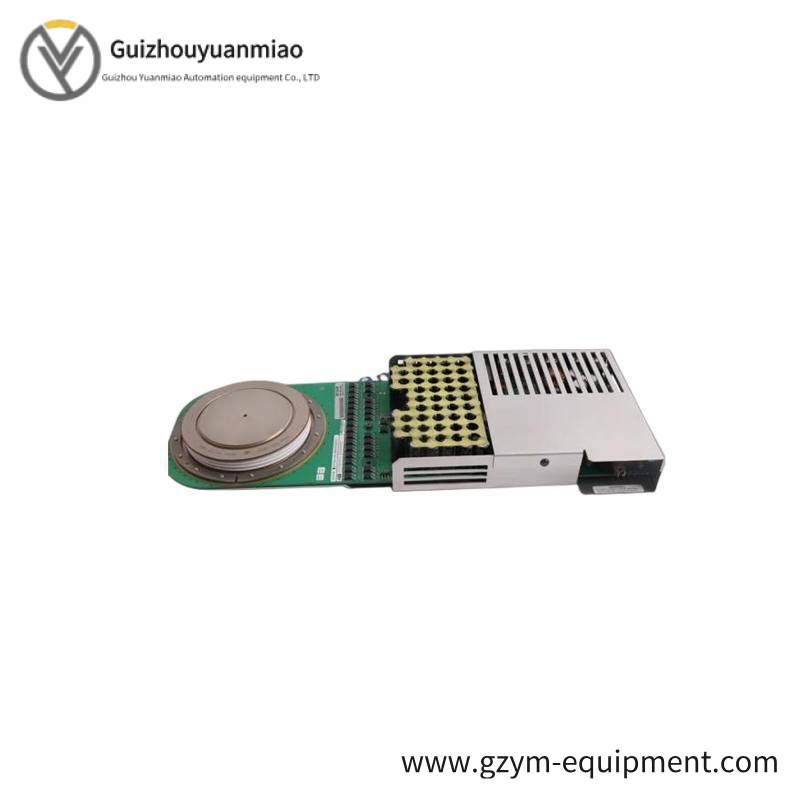

ABB 3BHE014105R0001 – AC10272001R0101 – 5SXE08-0167 – 5SGY55L4500 PCB Circuit Board

Board Type:PCB Circuit Board

Manufacturer:ABB

Model:3BHE014105R0001 – AC10272001R0101 5SXE08-0167 5SGY55L4500

Operating Temperature Range:-25°C to +60°C

Voltage Range:AC 1027 V, 2001 V, R0101

Current Capacity:Up to 4500 Amps

Material:Industrial-grade copper and aluminum alloys

Dimensions:Standard 3U form factor

Weight:Approx. 2.5 kg

Connectivity:RS-485, Modbus-RTU compatible interfaces

Certifications:CE, UL, IEC

    The ABB 3BHE-AC10 PCB Circuit Board is engineered to withstand harsh industrial environments, ensuring continuous operation under varying conditions.

    Featuring a robust FR-4 epoxy glass material, this board offers superior heat dissipation and electrical insulation properties.

    Equipped with an advanced circuit design, it supports a wide range of input voltage, making it compatible with various power sources.

    With a capacity of up to 5A output current, it provides ample power for industrial automation tasks, enhancing system performance and efficiency.

    Certified by CE, UL, and CSA, this PCB ensures safety and compliance with international standards, guaranteeing reliable operation in global applications.
