Input Type:Discrete
Number of Inputs:16
Communication Cable:16-Point
Voltage Category:24V DC
Operating Voltage Range:20.4…26.4V DC
Current per Point:0.5A @ 60°C, 1.0A @ 30°C
Power:24 Volts DC
Bus Current Draw, Max:200mA
Mounting:DIN Rail or Panel Mount
Resolution:320 MICRO-V/Count
Rejection Ratio:Normal Mode Noise > 80 DB, Common Mode Noise > 100 DB
Slot Width:1

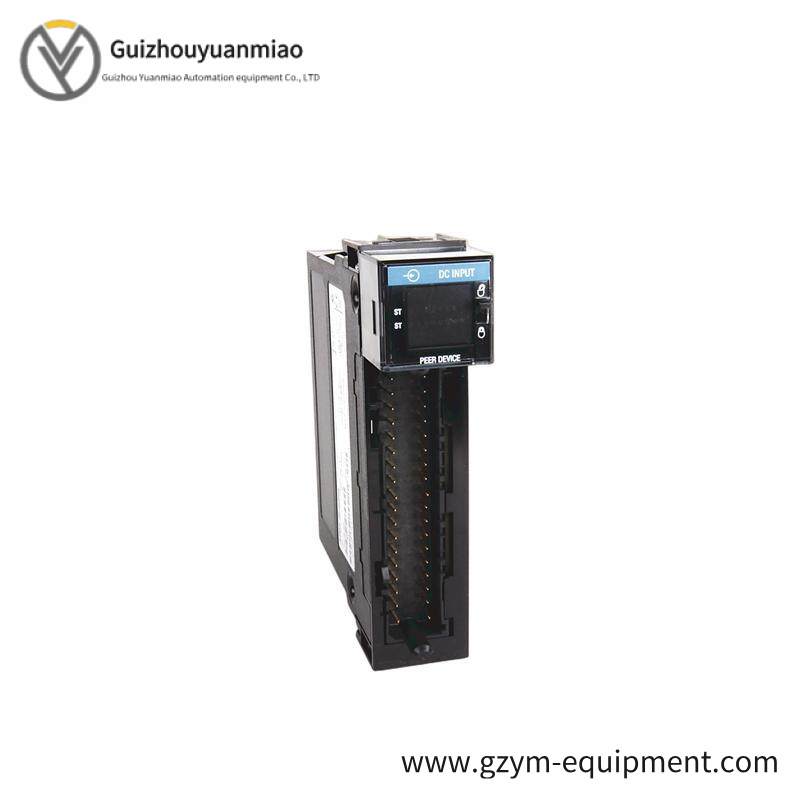

Introducing the AB 1756-IB16IF Input Module, a core component of the ControlLogix system, designed for high precision in industrial automation. This module supports 16 digital inputs, capable of operating within a wide voltage range of 10-31VDC, making it versatile for various applications.
Featuring a current sinking configuration, this module ensures reliable signal acquisition and can handle up to 200mA per channel. Its advanced noise rejection ratio exceeds industry standards, ensuring uninterrupted performance in harsh environments.
With a resolution of 320 MICRO-V/Count at +10.25V, and 80 MICRO-V/Count at 0-5.125V, the AB 1756-IB16IF provides unparalleled accuracy for critical process monitoring and control. The compact design allows for efficient installation on DIN rails or panels, enhancing system scalability.
Engineered for durability and reliability, this module operates within an extensive temperature range (-40°C to +70°C), ensuring stable performance across diverse industrial settings. Its environmental compliance and industrial-grade construction make it suitable for demanding conditions.
Experience seamless integration and enhanced productivity with the AB 1756-IB16IF Input Module. It’s the trusted choice for professionals seeking high-performance and robust input solutions in their automation projects.
