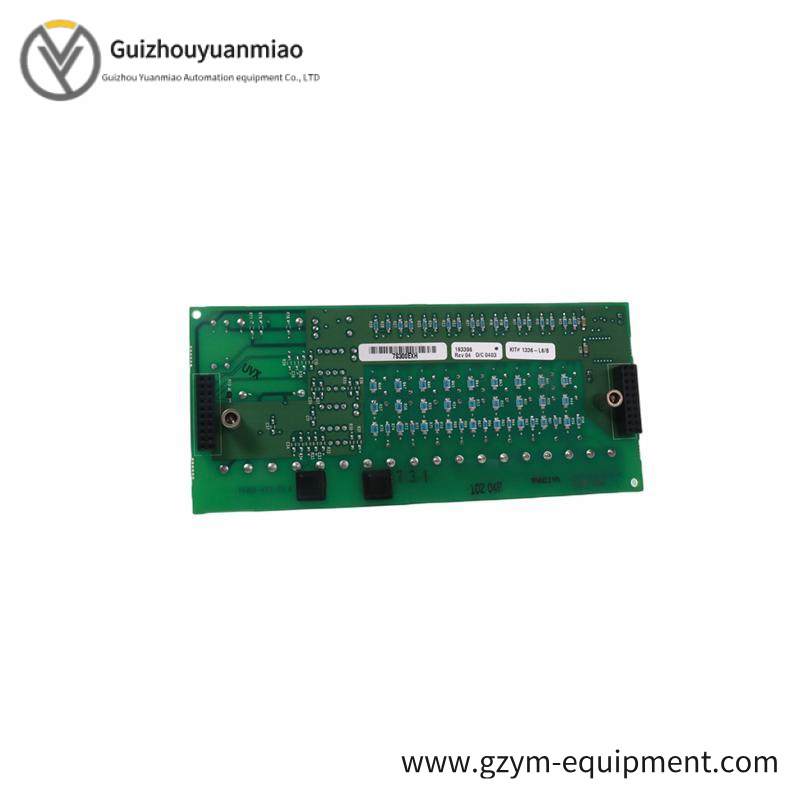

AB 1336-QOUT-SP13A Transistor Module, Precision Electronics for Industrial Control

Brand:AB Electronics

Model:1336-QOUT-SP13A

Module Type:Transistor

Power Rating:500W

Switching Frequency:50kHz

Operating Voltage Range:24VDC to 120VDC

Operating Temperature:-40°C to +85°C

Insulation Resistance:≥10MΩ @ 500VDC

Environmental Compliance:RoHS compliant

Dimensions:70mm x 35mm x 25mm

Weight:50g

    The AB Electronics 1336-QOUT-SP13A Transistor Module is engineered for demanding industrial applications requiring robust power switching capabilities. With its compact size and high-power capacity, it’s ideal for use in machinery, automation systems, and other equipment where reliability is paramount.

    Featuring a wide operating voltage range from 24VDC to 120VDC, this module is adaptable to various power sources and can handle a power rating of up to 500W, ensuring efficient energy transfer and minimal heat dissipation.

    The device is designed to withstand extreme temperatures ranging from -40°C to +85°C, making it suitable for harsh environments typically found in manufacturing plants, outdoor installations, and extreme condition settings.

    With an insulation resistance of ≥10MΩ at 500VDC, this module ensures reliable electrical isolation, safeguarding against short circuits and enhancing overall system safety.

    Compliant with RoHS standards, the AB Electronics 1336-QOUT-SP13A Transistor Module adheres to environmental regulations, promoting sustainable manufacturing practices and reducing hazardous materials exposure.

    For optimal performance, we recommend proper installation and maintenance procedures to maximize the lifespan and reliability of this component.
